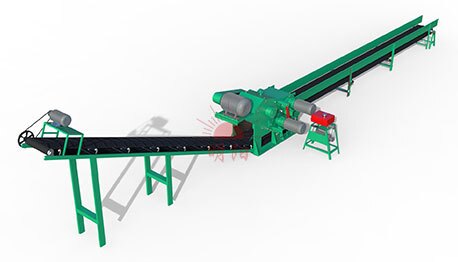

Drum Chipper

Drum chipping machine also known as the drum wood chipper, widely used in particleboard, fibreboard and papermaking and other industrial production of material preparation section, as well as wood chip plant. The raw materials of the drum chipper are mainly path wood, wood cutting leftovers (branches, etc.) and wood processing leftovers (veneer, lath, garden wood core,waste veneer, etc.). It can also be used for cutting non-wood materials (such as hemp, cotton, reed, bamboo, etc.). The raw material after chipping, into a certain specification of small wood chips, as particleboard, medium density board, fibreboard and other paper production raw materials, can also be used as fuel.

Product Introduction

Drum chipping machine also known as the drum wood chipper, widely used in particleboard, fibreboard and papermaking and other industrial production of material preparation section, as well as wood chip plant. The raw materials of the drum chipper are mainly path wood, wood cutting leftovers (branches, etc.) and wood processing leftovers (veneer, lath, garden wood core,waste veneer, etc.). It can also be used for cutting non-wood materials (such as hemp, cotton, reed, bamboo, etc.). The raw material after chipping, into a certain specification of small wood chips, as particleboard, medium density board, fibreboard and other paper production raw materials, can also be used as fuel.

Applicable raw materials

Pine, poplar, poplar, fir and other types of wood and bamboo, slab, slicing veneer, bamboo wood, corn stalk, cotton stalk, reed and other non-wood fiber rod can be cut into pieces of uniform chips.

Product Parameter

Model Power (kw) Blades number (pcs) Knife roller speed (tum) Size after crushed (mm) Capacity (t/h) Weight (kg)
MY-BX215 37+3+2.2+3 2 592 30 3-4 2990
MY-BX216 55+4+3+3 2 590 30 7-8 5030
MY-BX218 90+4+5.5+4 2 650 30 12-15 7000
MY-BX2113 200+11+11+5.5+4+3 2 500 38 15-30 11840

Features

  • 01 Stable working performance
  • 02 High throughput capacity and high quality chips
  • 03 Easy operation With input and output conveyor and Electric control cabinet
  • 04 Can adjust final chips size
  • 05 Suitable for Multiple material
