Vertical Hoist Carbonization Furnace

This air flow charcoal machine is a latest designed type carbonization equipment，with many advantages such as high carbonization speed, no smoke，high carbonization efficiency and so on.

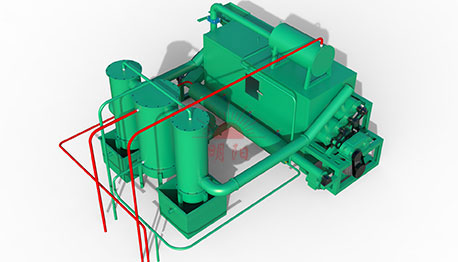

Horizontal Airflow Carbonization Furnace

It can carbonize a variety of raw materials, such as bamboo, coconut shell, logs and other materials with irregular shapes and large volumes. It can make the use of the gas from the raw material to heat itself , so after the preheating no need to add any energy during the carbonization process, the carbonization flue gas is fully burned, no pollution to the environment.

Sawdust Carbonization Furnace

Sawdust charcoal carbonization furnace, also known as environmental continuous gasification carbonization equipment, is used to convert carbonaceous wood or agricultural waste into carbon powder at high temperature.

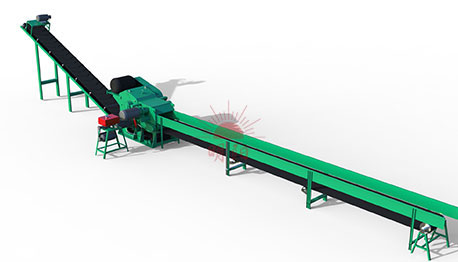

Drum Chipper

Drum chipping machine also known as the drum wood chipper, widely used in particleboard, fibreboard and papermaking and other industrial production of material preparation section, as well as wood chip plant.

Hammer Mill

Email: mingyang@zgmingyang.com

Send Email Inquiry Now

Product Introduction Applicable raw materials Product Parameter Features Inquiry

Product Introduction

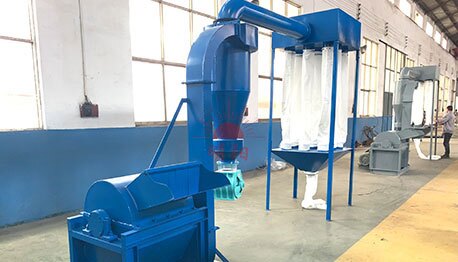

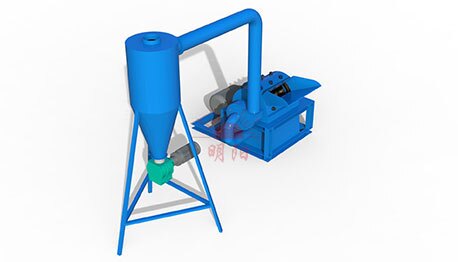

Wood hammer mill is endowed with many advantages compared to other kind of crushers such as large reduction rate, high production capacity, even crushed effects, low energy consumption and simple structure, etc. It can be used to crush hard, soft and weakly corrosive materials. After crushing, raw materials are uniform and with proper moisture content to meet further processing.

Applicable raw materials

Crush small sized material with diameter no more than 50mm, such like tree branches, tree trimmings, wood chips, wood cuttings, cotton stalk, corn stalk, wheat straw etc.

Product Parameter

model	power （kw）	Capacity （kg/h）	Orifice diameter （mm）	Blades number(pcs)	weight （kg）	size (m)
FJ600	22	600-800	600*240	30	700	1.81.82.6
FJ700	30	800-1000	700*260	40	800	2.01.82.6
FJ800	45+7.5+2.2	1200-1800	800*300	56	1200	4.52.54.5
FJ1000	55+11+11+ 2.2+2.2	2000-3000	1000*350	84	2700	5.53.04.5
FJ1000	75+15+15+ 2.2+2.2	2000-3000	1000*350	84	2700	5.53.04.5
FJ1300	90+15+15+ 2.2+2.2	3000-4000	1300*350	108	5000	6.03.54.5
FJ1300	110+18.5+18.5+2.2+ 2.2	3000-4000	1300*350	108	5500	6.03.54.5

Features

01 Hammers are the main parts and works the longest time, thus they are easily worn out. The proper adjustment is quite necessary. We adopt mew technology to make hammers and make them wear-resisting and impact resistant.
02 The whole crushing system is close, so there is no dust pollution .
03 Wood hammer mill is beautifully designed,compact structured and has less wearing parts.
04 We avoid defects like the bearing overheating, uneven wood materials, low capacity, high noise,etc. And make it develops towards low energy consumption, High Abrasion Resistance and environment friendly.
05 We offer tailored service as well based on your requirements.
