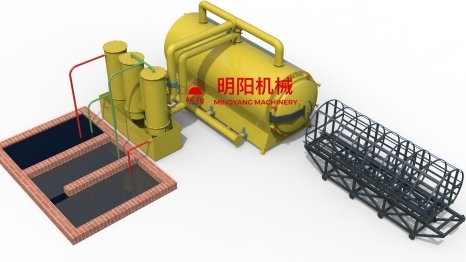

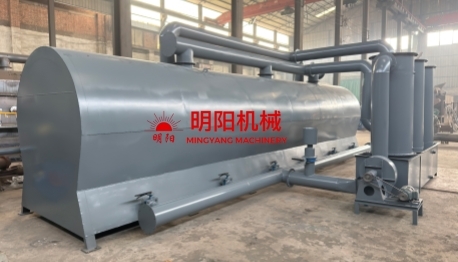

Horizontal charcoal machine

Working Principle

The horizontal charcoal machine achieves carbonization by transferring heat from its base to the internal material. At temperatures reaching 350degrees Centigrade, combustible gases are pyrolysed. After being purified, these gases are conveyed by a fan to the bottom of the furnace, where they aid in combustion. Then the heating system is shut down, completing the entire cycle.It operates on the principle of pyrolysis, where biomass materials are heated in an oxygen-limited environment to undergo thermal decomposition, ultimately producing charcoal.

Purification System Operation Principle

The combustible gas first passes through a water spray system where fine droplets remove tar, wood vinegar, and water vapour. Subsequently, a condenser removes moisture from the gas. The purified combustible gas is then returned to the furnace base to complete the cycle.

Raw Material & Moisture Requirements

Biomass dry distillation carbonization furnace is suitable for carbonization of biomass raw materials of different shapes, such as wood log, hardwood log, bamboo, jute sticks,Sorghum straw, corn straw, sesame straw, and other long rod-type biomass materials. To ensure optimal carbonization efficiency and quality, the raw material moisture content is recommended to be kept within 25%. Higher moisture content will increase the carbonization cycle, as excess moisture needs to be evaporated before the actual carbonization process begins.

Final Product and Application

The finished charcoal from the Charcoal Carbonization Furnace can be produced into Bamboo Charcoal, Coconut Shell Charcoal, Wood Charcoal, Corn Stalk Charcoal, Biomass charcoal Stick and other carbonized products, retaining the shape of the original material.

Application

Widely used in agricultural biochar, BBQ fuel, industrial fuel, animal feed and other fields. Customers can flexibly expand their business according to market demand to increase product added value.
