Product Introduction Applicable raw materials Product Parameter Features Inquiry

Product Introduction

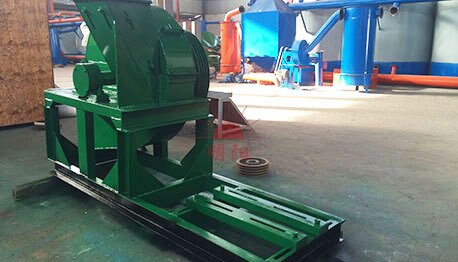

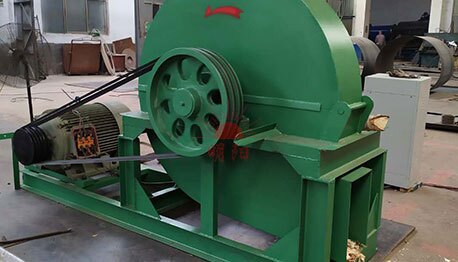

This wood shaving machine is mainly used to cut the wood into uniform shavings,and the thickness of shavings can be adjusted from 0.2mm to 1.5mm. The final product can be used as material of particleboard and paper pulp,and also used as bed for animals,such as pigs,cattle,sheep and horse, biomass energy as well.

Applicable raw materials

Different kinds of log,branch,plywood,board or plate,etc.

Product Parameter

Model	Power(Kw)	Inlet Size(mm)	Capacity(Kg/h)	Blade(Pcs)	Dimension(mm)	Weight(Kg)
420	7.5	140*100	300	4	1200500700	200
600	15	190*150	500	4	1550630950	380
800	30	240*220	1000	8	18508001400	800
1200	55	220*300	1500	9	240010001400	1150
1500	75	320*420	2000	12	300012001800	1600

Features

01 The motor : National standard, CE certified, pure copper coil,long and stable working lifetime.
02 Controller: Voltage down start to protect the motor and machine
03 Feeding hopper: With inner wearing resistant steel plate for long time using.
04 Body shell: 6 mm carbon steel plate. Strong and durable. 5,Discharge hole.
05 Machine base: GB U steel plate.
06 Rotary Plate and blades: The most important part of this machine, 1500mm diameter, 80 mm thickness cast steel plate, 14 mm thickness blades,with 60Si2MnA.alloy edge .
