Hot Air Pipe Dryer

This dryer is suitable for drying materials of moisture 30~60%. The dryer is equipped with two fuel boilers, inlet, steel pipe, exhaust blower (fan), air lock and cyclone. Wet materials are put into the hopper.

Product Introduction

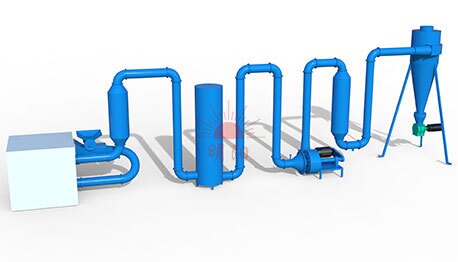

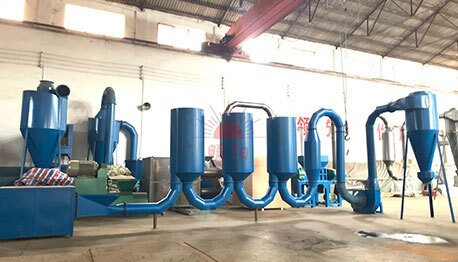

This dryer is suitable for drying materials of moisture 30~60%. The dryer is equipped with two fuel boilers, inlet, steel pipe, exhaust blower (fan), air lock and cyclone. Wet materials are put into the hopper. The fuel boiler generates hot air which mixes with wet materials and then is sucked into the pipes by the exhaust blower (fan) quickly. And then hot air is flowing and going though the curving pipes and buffer (drying chamber) of dryer, thus wet materials is finished to dry, and the dried materials are discharged from the outlet with air lock. This wood dryer reduces the moisture to 8~12% with the advantages of low cost consumption and high efficiency.

Applicable raw materials

sawdust, rice husk, wood powder, grass

Product Parameter

Mode Fan power (KW) Capacity (kg/h) Weight (kg) Package size (m) Total length (m) Fire box size (m)
HJ-4 4 300-400 1000 1.52*1.22*0.98+2.32*1.42*1.43 8 1.08*0.7*0.81
HJ-6 4 400-500 1500 1.45*1.22*0.98+2.45*1.9*1.15 10 1.08*0.7*0.81
HJ-8 11+1.5+0.75 600-800 2800 12*2.5*3.5 11.1 1.55*1.08*1.3 1.15*1.5

Features

  • 01 The sawdust dryer have high degree of mechanization, large production capacity and continuous working.
  • 02 With simple and excellent structure, the material running smoothly inside the sawdust dryer cylinder.
  • 03 The sawdust dryer with less mechanical failure, low maintenance and low power consumption.
  • 04 The dryer work uniformly and the drying product is very good.
  • 05 With complete dust removal equipment and protect the environmental.
  • 06 Sawdust dryer with no dust spilling.
  • 07 Easy to operate and have a good operating environment.
