As a traditional drying machine, rotary drum dryer is an industrial dryer machine employed to reduce or minimize the moisture content of sawdust or wood chips.view more
The charcaol ball press machine is used to pass coal powder, coke powder, charcoal powder, carbon black, iron ore powder, cast iron powder, rolling mill scales, aluminum slag, sodium carbonate, flue dust, manganese ore powder and other materials through a high-pressure rolling mechanism into balls.view more
This wood briquette machine is the main equipment to make stick solid fuel with such wood materials as bits of wood sawdust,rice shells or peanuts shell not contain any additives etc.The raw material with size 3-5mm (contain 8%-12%water ) dried by the dryer will be formed into fuel under high temperature and pressure.view more

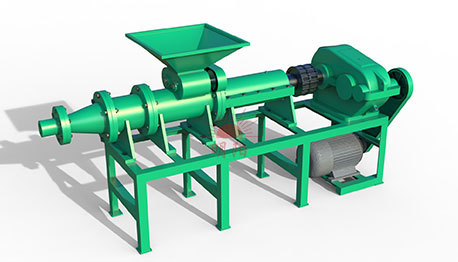

The charcoal powder extruder is mainly used to make artificial charcoal from charcoal powder and the motor transmits power to the transmission through the V-belt. The transmission output shaft transmits the power to the propeller through the floating coupling, and the propeller pushes the coal forward through the forming die to produce an ideal high-pressure charcoal briquettes.view more

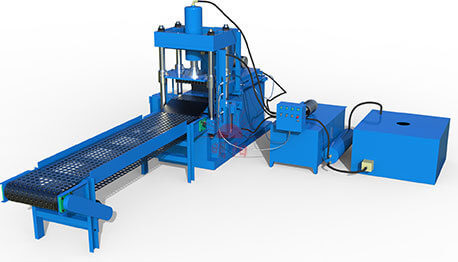

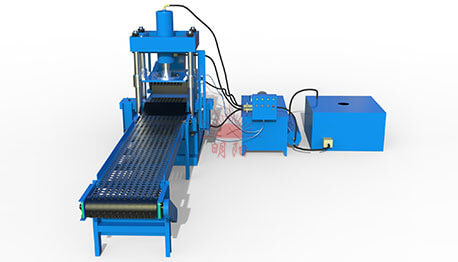

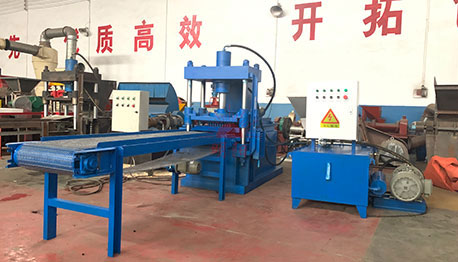

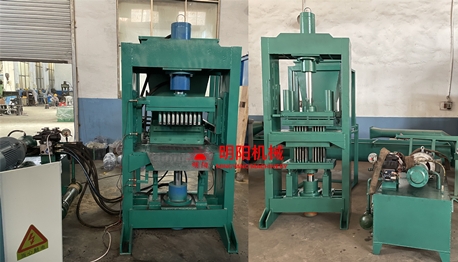

This Hydraulic charcoal powder punching machine is new upgrade to improve machine. This machine is a full-automatic machine, different with mechanical machine, the pressure is very high. This charcoal briquette making machine can be produce hookah/ shisha/ nargile charcoal briquette, or BBQ charcoal briquette.Using carbonized coconut charcoal powder, bamboo, sawdust charcoal produce cube shape, cylinder shape, hexagon shape, etc. Sawdust, rice husk, coconut shell, coal powder, paraffin, etc. And hydraulic pump station structure design is reasonable, the highly centralized hydraulic valve and unique oil line design hydraulic system perfect, to reduce the leakage, to ensure that the equipment can produce long-term continuity, improve the product’s production.
Carbon block less than 3mm
Small material size is always good for charcoal briquette making before you make your charcoal briquette, please check all of your charcoal fine with the proper size. We recommend you the of under 3mm for making good quality charcoal briquette.
A moisture around 30-40% is working with the charcoal briquette process, high moisture will build a briquette with high density and with low energy cost on briquetting process. Briquette charcoal with binder
Charcoal is a material totally lacking plasticity and hence needs addition of a sticking or agglomerating material to enable a briquette to be formed. Thus Binder becomes a very important factor is the charcoal briquette making process, pure charcoal is a thing which burns with no smoke, no smell. The use of charcoal determines the type of binder it uses, for industry usage, there would be wider choices in binders.
starch, clay, slime, tar and pitch, molasses, resin, animal manure, sulphite liquor residues, etc.
It is possible to add material to aid combustion of briquettes such as waxes, sodium nitrate, and so on, during manufacture to give a more acceptable product.
Usage of some common additives: brown coal (heat source), mineral carbon (heat source), borax, sodium nitrate (ignition aid), limestone (ash-whitening agent), raw sawdust (ignition aid).
|Model||Main engine power(kw)||Belt power (kw)||Hydraulic pump power(kw)||Capacity (pcs/h)||Host packaging size (m)||Mould|
|HYJ450||11||0.75||0.75||19800||2.07*1.27*1.86||cubic, tablet 25, 33, 38mm|
If you have any questions, you can contact us by email
